Persona Focused Visualization( Centralized portal)
ANI Portal
App QoE-Driven, Persona-Based 5-W Workflows: provides streamlined operational process improvements that highlight the value Layer 1 and Layer 2 data
|
Control Plane( App QoE, Data Enrichment, Storage, and Export)
Maestro
|
QoE Insights( KAFKA) |
Big Data Export |
Measured by: individual App QoE Score accuracy / proven through visual management reporting |
|
Usage / Billing Reconciliation Insights( KAFKA) |
|
|
Data Plane( App Classification)
AppLogic
Measured by: individual App Classification accuracy / proven through visual management reporting
User ActiveLogic
Internet

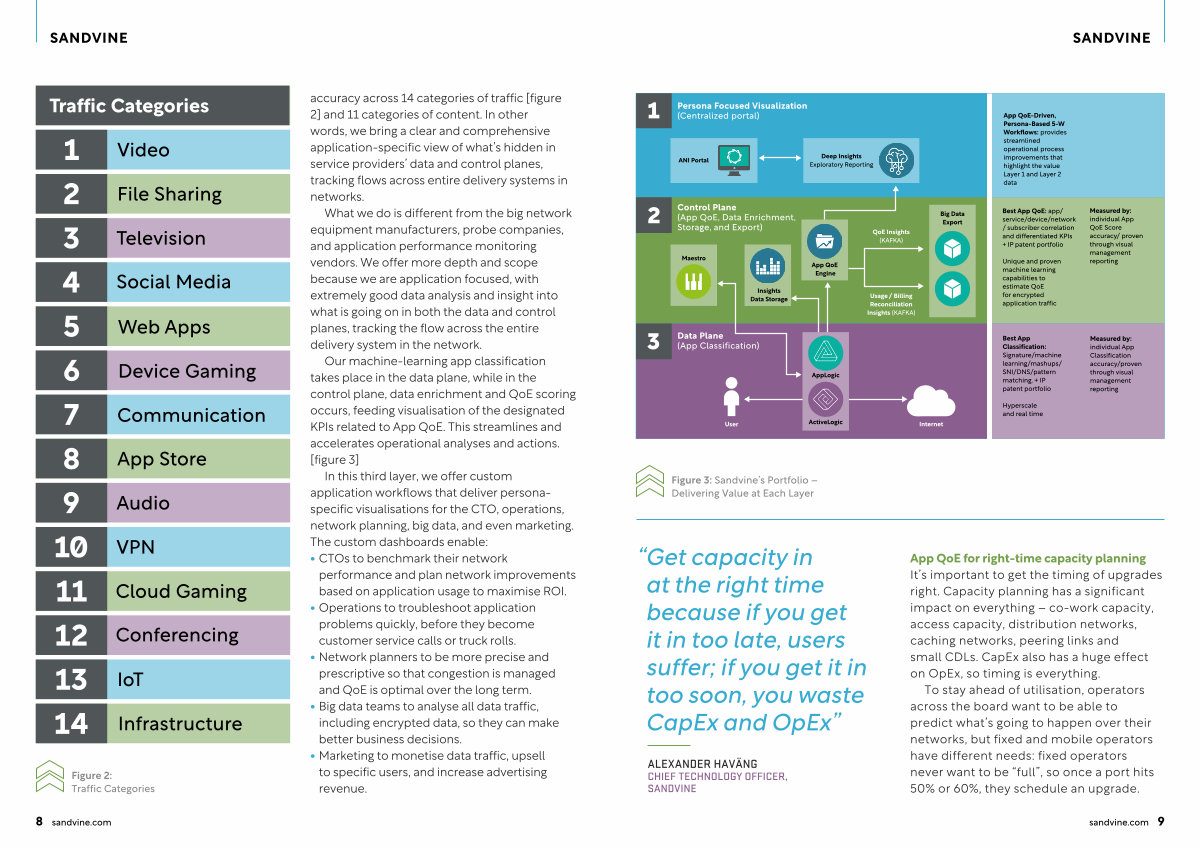

Figure 3: Sandvine’ s Portfolio – Delivering Value at Each Layer
“ Get capacity in at the right time because if you get it in too late, users suffer; if you get it in too soon, you waste CapEx and OpEx”
ALEXANDER HAVÄNG CHIEF TECHNOLOGY OFFICER, SANDVINE
App QoE for right-time capacity planning It’ s important to get the timing of upgrades right. Capacity planning has a significant impact on everything – co-work capacity, access capacity, distribution networks, caching networks, peering links and small CDLs. CapEx also has a huge effect on OpEx, so timing is everything.
To stay ahead of utilisation, operators across the board want to be able to predict what’ s going to happen over their networks, but fixed and mobile operators have different needs: fixed operators never want to be“ full”, so once a port hits 50 % or 60 %, they schedule an upgrade.
